  Home >> Vacuum tube >> Nature Sound >> K&D >> NA-300B-L 300B Brass Base HIFI Nature Sound Tube

NA-300B-L 300B Brass Base HIFI Nature Sound Tube [Comments(0)|Leave your Comment]
Brand:K&D
Item#:13062706300964
Score:1  (Score change Discount Voucher)
Weight:0.4 kg.
List Price:$110.00
Price:$93.00
You Save:$17.00
Qty:

Prev:TG-AL3G Gold Aluminum tube guard

Next:NA-300B-C 300B Ceramic HIFI Nature Sound Tube

detail

Related

Comment

Payment

Shipping

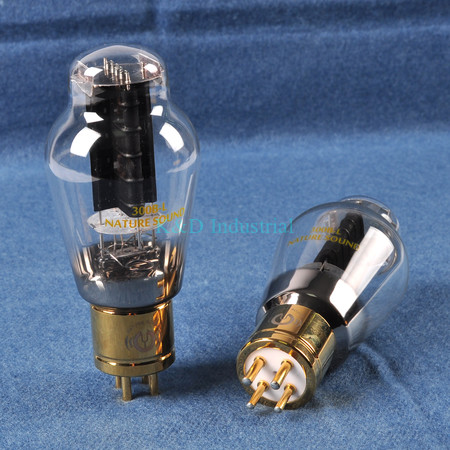

HIFI Nature Sound 300B Audio Vacuum Tube Brass Base

One piece 300B



300B is directly-heated type cathode triode, used as class A1. In audio amplifier it suits for the condition that the output power is 10W.



Heater
Uf(DC)………………5V
If(DC) …………… 1.2A

Maximum Rating

Ua……………300V
Pa………40W

Ik
with cathode bias………………100 mA
with fixed bias……………70 mA

Direct Interelectrode Capacitances
input……………9PF
output……………4.3PF
grid to plate……………15PF

Static parameter


Ua……………………300V
-Ug………………… 60V
Ia……………………60mA
Gm……………………5.5mA/V
ri……………………0.7 KΩ
u ……………………3.85
Pout…………………6.6W



ROHS Compliant

Good quality tubes



Test and selected by factory
3months quality warranty from date of receipt.
